Mackie ProFX6v3 USB มิกเซอร์/ออดิโอ อินเตอร์เฟส 6 Channel, มีเอ็ฟเฟคในตัว 24 FX, บันทึกเสียง, ไลฟ์, สตรีม ฯลฯ รองรับ Mac/PC รับประกันศูนย์ไทย 1 ปีเต็ม

Mackie ProFX6v3 มิกเซอร์/ออดิโอ อินเตอร์เฟส 6 Channel มีเอ็ฟเฟคในตัว 24 FX บันทึกเสียง, ไลฟ์, สตรีม ฯลฯ รองรับ Mac/PC

Features

2 x Mic/Line Inputs

2 x Mono/Stereo Line Inputs

2-In / 4-Out USB (24-Bit, 192 kHz)

Gig FX Effects Engine (24 FX Presets)

Rugged design will stand up to the wear and tear of the road

2 Band EQ and 100Hz low-cut filter on all channels

Built-in channel compression

48-volt phantom power on all mic channels

USB for playback music and recording into your computer

Balanced XLR and balanced/unbalanced outputs

Headphone output has separate volume control

Specs

Equivalent Input Noise 150-Ohm Source Impedance, 20 Hz to 20 kHz:

Mic In to Insert Send Out, Max Gain -126 dBu

Residual Output Noise All Outputs, Master Levels Off, All Channel Levels Off: -95 dBu

All Outputs, Master Levels Unity, One Channel Level Unity: -80 dBu

Frequency Response Mic Input to Any Output (Gain at Unity, +0 dB / -1 dB): 20 Hz to 30 kHz

THD+N 22 Hz to 80 kHz Bandwidth: Mic In to Main Out (+4 dBu Output): < .03%

Attenuation and Crosstalk Adjacent Inputs at 1 kHz: -90 dB

Inputs to Outputs at 1 kHz: -80 dB

Fader Off at 1 kHz: -75 dB

Mute Switch / Break Switch Mute at 1 kHz: -90 dB

Common Mode Rejection Ratio Mic In to Main Out, Max Gain, 1 kHz: 70 dB

Maximum Level All Inputs: +22 dB

Main Out XLR: +28 dBu

All other Outputs: +22 dBu

Impedance Mic In: 3.8 Kilohms

Channel Insert Return: 10 Kilohms

All Other Inputs: ≥ 20 Kilohms

Phones Output: 25 Ohms

All Other Outputs: 120 Ohms Unbalanced, 240 Ohms Balanced

Equalization Low ±15 dB at 80 Hz

High ±15 dB at 12 kHz

Low-Cut Filter 18 dB/octave at 100 Hz

Maximum Voltage Gain Mic Input Channel to:

1/4" Main Output: 80 dB

XLR Main Output: 86 dB

FX Send: 90 dB

USB Output: 70 dB

Mono Line Input Channel to:

1/4" Main Output: 40 dB

XLR Main Output: 66 dB

FX Send: 70 dB

USB Output: 50 dB

Stereo Line Input Channel to:

1/4" Main Output: 20 dB

XLR Main Output: 26 dB

USB Output: 10 dB

1/8" Input to:

1/4" Main Output: 40 dB

XLR Main Output: 46 dB

USB Output: 10 dB

Digital Effects Number of Presets: 16

Meters Main L/R Mix

Two Columns of 8 Segments Each: OL, +14, +8, +4, 0 (0 dBu), -4, -12, -24

USB Format: USB 2.0

I/O: 1 Stereo Input, 2 Stereo Outputs

A/D/A: 24-Bit / 44.1, 48, 96, 192 kHz

Phantom Power 48 VDC to All Mic Channels Simultaneously

AC Power Requirements Universal AC Power Supply: 100 - 240 VAC, 50 - 60 Hz

Power Supply: 12 VDC at 2A Class I Hard-Wired Wall Mount Adapter

Dimensions 2.9 x 7.5 x 8.4" / 7.1 x 19.0 x 21.3 cm

Weight 2.6 lb / 1.2 kg

Packaging Info

Package Weight 4 lb

Box Dimensions (LxWxH) 19 x 13 x 9"

In the Box

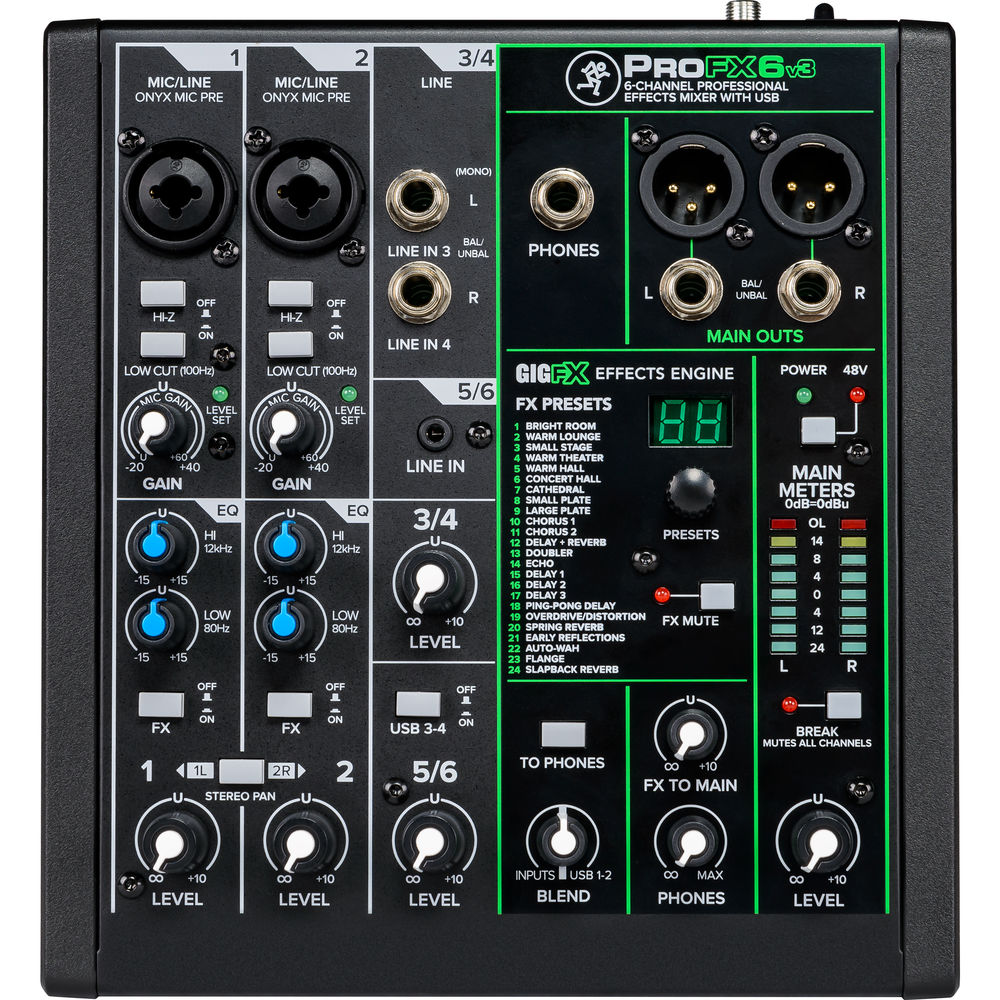

Mackie ProFX6v3 6-Channel Sound Reinforcement Mixer with Built-In FX

USB Cable

Power Supply

Serial Number for Download of Pro Tools | First, Waveform OEM, and The Musician Collection
