รายละเอียดสินค้า

ไฮไลท์

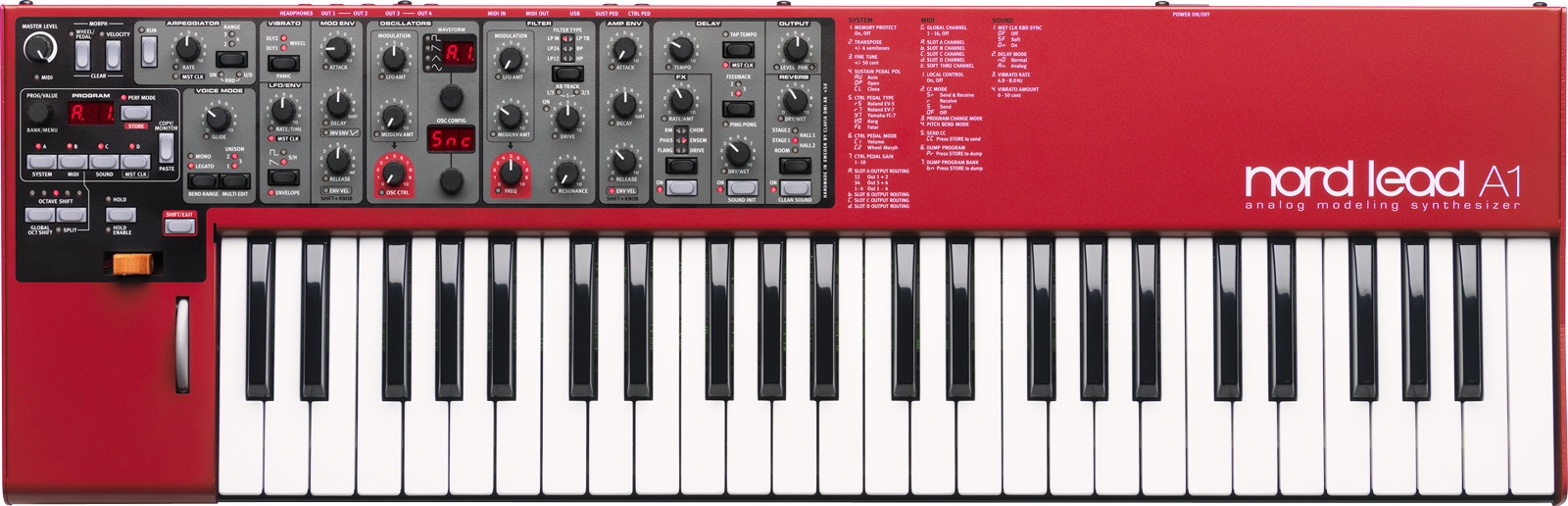

Nord Lead A1 *ของแท้รับประกัน 1ปี* 49-Key Analog Modeling Synthesizer สุดยอดซินธีไซเซอร์ระดับโลก Made in Sweden,ฟังก์ชั่นครบครัน
Filter Section
The Lead A1's filter section features classic 12 and 24 dB low-pass, a high-pass and a band-pass filter, together with emulations of the diode and ladder filters from the Mini and the TB-303 synthesizers. The Lead A1's modeling of these filters capture the character and response of the originals, allowing flexible sound design
Effects Section
The Lead A1's effects section features two analog models of an ensemble and chorus, modeled on specific vintage synths and adding analog feel. Alongside these, choose from ring modulation, phaser, flanger or drive per slot and in addition a separate delay and reverb for each slot
Performance
Mod Wheel and Velocity Morph:
The Morph function via mod wheel, velocity or pedal, allows you to control multiple parameters of the Lead A1 simultaneously. Morph can be used by just holding the Morph button and adjusting any desired knob
Master Clock:
The Master Clock function of the Lead A1 allows the LFO, arpeggiator and delay to be synchronized, either internally or slaved to external MIDI clock. A tap tempo button allows you to tap to the tempo of a drummer or to playback tracks
Arpeggiator:
The Lead A1 features four separate arpeggiators with Up/Down and random modes and a 4-octave range. Any or all can be sync'd to the Lead A1's master clock
Splits and Layers:
Having four identical, equally powerful synthesizers at once opens layering possibilities. The Split-mode gives you two 2 slots on each side of the split. A flexible Hold functionality lets you latch and hold slots independently in the background while playing something else on top
Four Outputs:
The Lead A1 features four independent audio outputs with the ability to route each slot to a different output. Plus control of Pan via the front panel knob is a welcome addition in the Lead A1
Sound Manager:
The Lead A1 includes the Nord Sound Manager software for OS X and Windows. Sound Manager is a dedicated librarian app which allows easy reorganizing, back-up and transfer of programs
MIDI Control:
The Lead A1 features the convenience of MIDI over USB for use with a sequencer and all of the Lead A1's knobs transmit MIDI Control data
The Hardware:
Like all Nord keyboards the Lead A1 is handmade in Nord's Stockholm factory. The Fatar 49-key keybed, all-metal chassis, and tactile knobs are designed for years of use
In the Box
Nord Lead A1 49-Key Analog Modeling Synthesizer
Power Cord
Specs
General
Keyboard 49-key octave velocity sensitive keyboard with octave shift buttons (+/- 2 octaves)
Keyboard Split with 2 slots for the upper and lower section
Controls 1x Modulation wheel
1x Pitch stick (with no dead zone at zero crossing)
1x 1/4" (6.3 mm) pedal input for sustain pedal
1x 1/4" (6.3 mm) pedal input for expression pedal
Pitch Bend Range Programmable up to +/- octave
User Interface 3x LED displays
23x knobs
3x encoders
20x buttons for program and performance editing
Oscillator
Waveform Multiple Oscillator waveforms; traditional analog, extended analog, pulse waveforms, wavetable
OSC Configuration Knob Categories: pitch, detune, shape, sync, ring modulation, noise, dual OSC, FM
Filters
Type Multi-mode Filter:
12 dB (2-pole) low-pass,
24 dB (4-pole) low-pass and band pass, high pass
Ladder M and Ladder 303 characteristics
Control Cut off, resonance, envelope amount, LFO amount, drive
Envelope ADR/ASR
Tracking Ability Filter keyboard tracking can be set to off, 1/3, 2/3 or full
Distortion Filter Distortion: Adjustable
Modulation
LFO1 Generates: triangle, square, sawtooth, inverted sawtooth or sample and hold waveforms
Routing: can be routed to filter frequency, pitch, shape and OSC mod
Sync: Can be synchronized to the Master Clock
Modes: can be switched to Env mode with three different characteristics and sample and hold is manually triggered by keyboard
Arpeggiator Range: 1 to 4 octaves
Modes: up, down, up/down, random, Poly
Sync: arpeggio rate can be synchronized to the Master Clock
Envelope ADR/ASR
Velocity control: on/off
Inverse Envelope: on/off
Amplifier
Control ADR/ASR envelope
Gain control
Individual Pan Control: per program
Velocity Control: on/off
Performance
Voices Poly, legato with portamento, Mono, True Unison 1, 2 & 3
Layering 4x program slots for layering possibilities
Effects
Effects Types: flanger, phaser, ring modulation, chorus, ensemble and drive
Delay Types/Controls: Tap tempo, four stages of feedback, ping-pong, dry/wet mix
Sync: delay speed can be synchronized to the Master Clock
Reverb Types: room, stage 1, stage 2, hall 1, hall 2
Memory
Programs Single Sounds: 8x 50 (400) locations
Performances (Multiple Sounds): 4x 50 (200) locations
Audio Output
Output 4x unbalanced 1/4" (6.3 mm) (each slot can be assigned to its own output)
1x 1/4" (6.3 mm) stereo headphone output
24-bit DACs
MIDI
Type USB MIDI
5-pin DIN in
5-pin DIN out
THRU: soft
Control All control knobs and switches send and receive control change messages
MIDI Dumps: System exclusive or all programs
Sync Master Clock will sync to incoming MIDI clock
Dimensions & Weight
Dimensions (L x W x D) 34.0 x 3.7 x 10.7 (864 x 94 x 272 mm)
Weight 10.7 lb (4.85 kg)
Packaging Info
Package Weight 17.3 lb
Box Dimensions (LxWxH) 39.3 x 15.3 x 8"
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า
Nord Lead A1 *ของแท้รับประกัน 1ปี* 49-Key Analog Modeling Synthesizer สุดยอดซินธีไซเซอร์ระดับโลก Made in Sweden,ฟังก์ชั่นครบครัน

Filter Section
The Lead A1's filter section features classic 12 and 24 dB low-pass, a high-pass and a band-pass filter, together with emulations of the diode and ladder filters from the Mini and the TB-303 synthesizers. The Lead A1's modeling of these filters capture the character and response of the originals, allowing flexible sound design

Effects Section
The Lead A1's effects section features two analog models of an ensemble and chorus, modeled on specific vintage synths and adding analog feel. Alongside these, choose from ring modulation, phaser, flanger or drive per slot and in addition a separate delay and reverb for each slot

Performance
Mod Wheel and Velocity Morph:
The Morph function via mod wheel, velocity or pedal, allows you to control multiple parameters of the Lead A1 simultaneously. Morph can be used by just holding the Morph button and adjusting any desired knob
Master Clock:
The Master Clock function of the Lead A1 allows the LFO, arpeggiator and delay to be synchronized, either internally or slaved to external MIDI clock. A tap tempo button allows you to tap to the tempo of a drummer or to playback tracks
Arpeggiator:
The Lead A1 features four separate arpeggiators with Up/Down and random modes and a 4-octave range. Any or all can be sync'd to the Lead A1's master clock
Splits and Layers:
Having four identical, equally powerful synthesizers at once opens layering possibilities. The Split-mode gives you two 2 slots on each side of the split. A flexible Hold functionality lets you latch and hold slots independently in the background while playing something else on top
Four Outputs:
The Lead A1 features four independent audio outputs with the ability to route each slot to a different output. Plus control of Pan via the front panel knob is a welcome addition in the Lead A1
Sound Manager:
The Lead A1 includes the Nord Sound Manager software for OS X and Windows. Sound Manager is a dedicated librarian app which allows easy reorganizing, back-up and transfer of programs
MIDI Control:
The Lead A1 features the convenience of MIDI over USB for use with a sequencer and all of the Lead A1's knobs transmit MIDI Control data
The Hardware:
Like all Nord keyboards the Lead A1 is handmade in Nord's Stockholm factory. The Fatar 49-key keybed, all-metal chassis, and tactile knobs are designed for years of use

In the Box
Nord Lead A1 49-Key Analog Modeling Synthesizer
Power Cord

Specs
General
Keyboard 49-key octave velocity sensitive keyboard with octave shift buttons (+/- 2 octaves)
Keyboard Split with 2 slots for the upper and lower section
Controls 1x Modulation wheel
1x Pitch stick (with no dead zone at zero crossing)
1x 1/4" (6.3 mm) pedal input for sustain pedal
1x 1/4" (6.3 mm) pedal input for expression pedal
Pitch Bend Range Programmable up to +/- octave
User Interface 3x LED displays
23x knobs
3x encoders
20x buttons for program and performance editing

Oscillator
Waveform Multiple Oscillator waveforms; traditional analog, extended analog, pulse waveforms, wavetable
OSC Configuration Knob Categories: pitch, detune, shape, sync, ring modulation, noise, dual OSC, FM

Filters
Type Multi-mode Filter:
12 dB (2-pole) low-pass,
24 dB (4-pole) low-pass and band pass, high pass
Ladder M and Ladder 303 characteristics
Control Cut off, resonance, envelope amount, LFO amount, drive
Envelope ADR/ASR
Tracking Ability Filter keyboard tracking can be set to off, 1/3, 2/3 or full
Distortion Filter Distortion: Adjustable

Modulation
LFO1 Generates: triangle, square, sawtooth, inverted sawtooth or sample and hold waveforms
Routing: can be routed to filter frequency, pitch, shape and OSC mod
Sync: Can be synchronized to the Master Clock
Modes: can be switched to Env mode with three different characteristics and sample and hold is manually triggered by keyboard
Arpeggiator Range: 1 to 4 octaves
Modes: up, down, up/down, random, Poly
Sync: arpeggio rate can be synchronized to the Master Clock
Envelope ADR/ASR
Velocity control: on/off
Inverse Envelope: on/off

Amplifier
Control ADR/ASR envelope
Gain control
Individual Pan Control: per program
Velocity Control: on/off

Performance
Voices Poly, legato with portamento, Mono, True Unison 1, 2 & 3
Layering 4x program slots for layering possibilities

Effects
Effects Types: flanger, phaser, ring modulation, chorus, ensemble and drive
Delay Types/Controls: Tap tempo, four stages of feedback, ping-pong, dry/wet mix
Sync: delay speed can be synchronized to the Master Clock
Reverb Types: room, stage 1, stage 2, hall 1, hall 2

Memory
Programs Single Sounds: 8x 50 (400) locations
Performances (Multiple Sounds): 4x 50 (200) locations

Audio Output
Output 4x unbalanced 1/4" (6.3 mm) (each slot can be assigned to its own output)
1x 1/4" (6.3 mm) stereo headphone output
24-bit DACs

MIDI
Type USB MIDI
5-pin DIN in
5-pin DIN out
THRU: soft
Control All control knobs and switches send and receive control change messages
MIDI Dumps: System exclusive or all programs
Sync Master Clock will sync to incoming MIDI clock

Dimensions & Weight
Dimensions (L x W x D) 34.0 x 3.7 x 10.7 (864 x 94 x 272 mm)
Weight 10.7 lb (4.85 kg)

Packaging Info
Package Weight 17.3 lb
Box Dimensions (LxWxH) 39.3 x 15.3 x 8"
