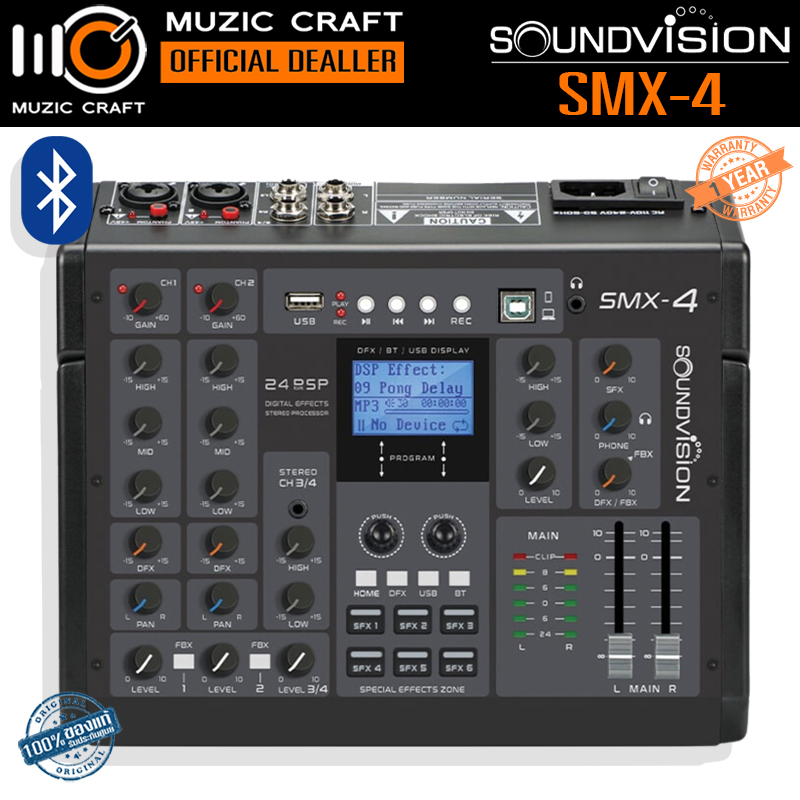

SOUNDVISION SMX-4 *ของแท้รับประกัน 1ปี* มิกเซอร์ 6 Channel Analog Mixer
Feature:
• 2 Mono, 1 Stereo and 2 USB Input Channels.
• 48V Phantom Power Supply in each Channel.
• 6 Special Effects of the sound card.
• 24-bit DSP digital effect
• 2in/2out Built-in USB Audio interface
• Built-in Bluetooth 5.2 Player
• Built-in digital feedback suppressor
• Power supply AC 110-240 Voltage
Specs:
Input channels 6
Mono (Mic/Line) 2 (Combo XLR)
Stereo (Line)
1 (TS) (3/4)
1 Phone (TRS)
USB 2
Output channels
Master out 2 (TS)
Phones out 1 (TRS)
Digital I/O 2-in/2-out, USB audio interface (Audio player and recording)
Gain +10 dB/-60 dB
Input channel EQ
Mono
High: Gain+15dB/-15dB Frequency response: 12kHz(shelving)
Mid: Gain+15dB/-15dB Frequency response: 2.5kHz(peaking)
Low: Gain+15dB/-15dB Frequency response: 80Hz(shelving)
Stereo
High: Gain+15dB/-15dB Frequency response: 12kHz(shelving)
Low: Gain+15dB/-15dB Frequency response: 80Hz(shelving)
LED level meter 2 x 6 points LED meter (Clip, 8, 6, 0, 6, 24)
Digital effects 24 programs, Control Knob.
Special effects 6 SFX
GENERAL
Frequency response 20Hz-20KHz@+ -0.5dB
Total harmonic distortion <0.03@1khz
Operating temperature 0°C to 40°C
Phantom power +48V per channel
Power consumption 15W
Power requirements 110V-240V/50-60Hz
Net weight 1.8 Kgs.
Dimensions (W x D x H) 25.5 x 21.5 x 9.2 cm
