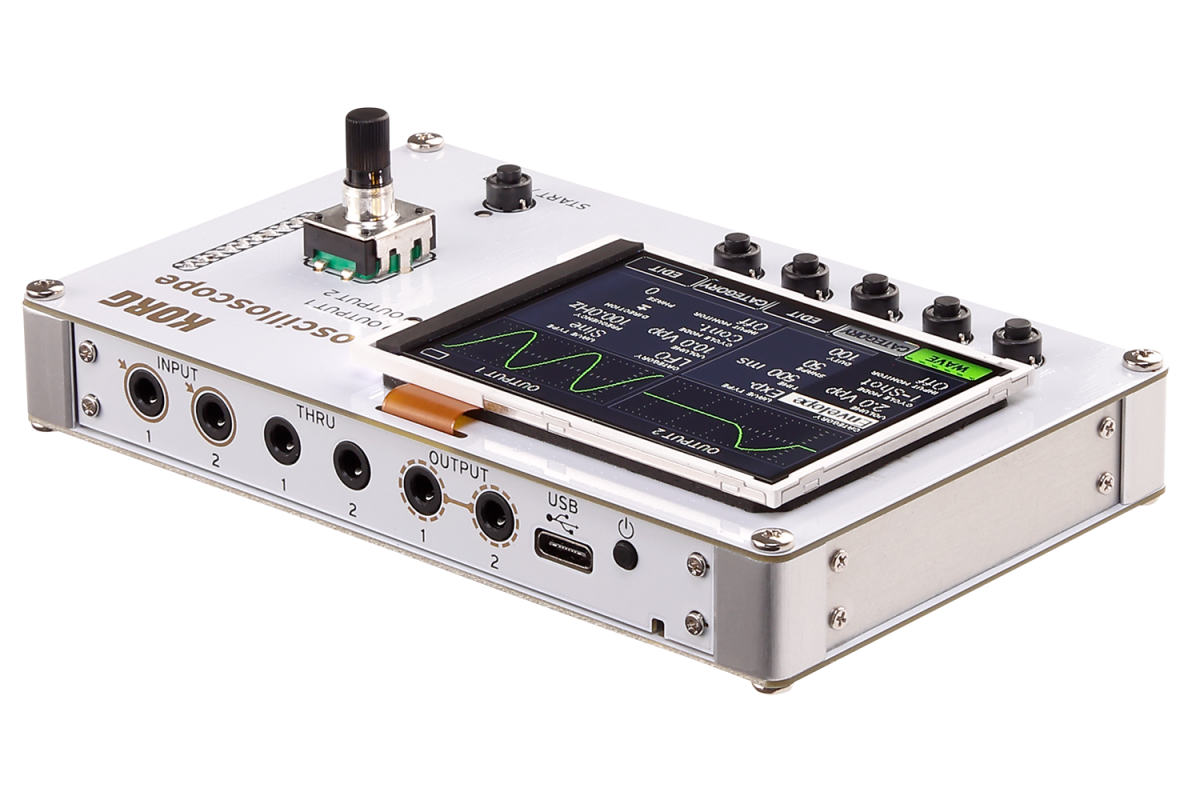

Korg NTS-2 oscilloscope kit *ของแท้รับประกัน 1ปี* PATCH & TWEAK with KORG
Features:
A useful toolset for musicians
studio functions, all in a pocket-sized, elegant package that you can take anywhere.
4 CHANNEL OSCILLOSCOPE
FFT / SPECTRUM ANALYZER
DUAL WAVEFORM GENERATOR:
TUNER
Specs:
PowerUSB type-C (2.0, 500mA max) or 2x AAA batteries (approx 2 hours running time)InputsInput: 3.5mm Stereo x2, ±10V maxThrough Output: 3.5mm Stereo x2Output: 3.5mm Mono x2, ±5V maxOscilloscopeDisplay modes: Single, Stereo (Input1L-INPUT1R, Input1L - Input2L, Input2L - Input2R), 4ch、XY(Lissajous, 2ch)Vertical: 10mV~5V/div, AC/DC MODE switchableHorizontal: 50us~1s/divTrigger: Auto, Rise, Fall, Single(rise), Single(fall)FFT (Spectrum Analyzer)Input: mono (1L, 1R, 2L, 2R)Frequency: 0Hz~20kHzFunction GeneratorWave type: sine, square, triangle, saw, noise, pulse, envelopeFrequency: 1Hz~10kHz, Hz/NOTE mode switchable, [1ms~10s,sec/BPM switchable(pulse, envelope mode)]Output level: 10Vpp max, V/dB mode switchableTunerDisplay mode: Needle, MeterInput: Mono, Stereo (Input1L-Input1R, Input1L-Input2L)Calibration: 410-480Hz
Dimensions 12.9 x 7.8x 3.9 cm
Weight 0.2 kg
