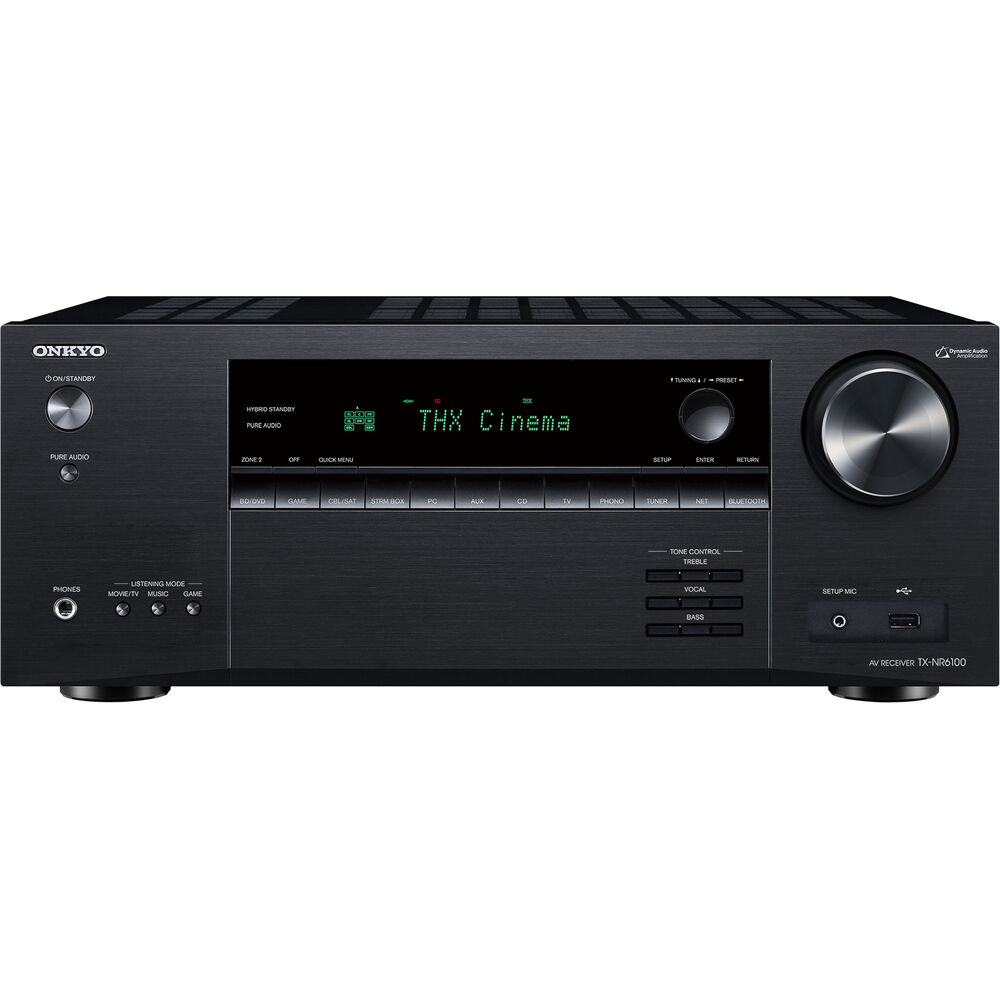

Onkyo TX-NR6100 *ของแท้รับประกัน 1ปี* 7.2-Channel Network A/V Receiver
Features
Up to 100W per Channel at 8 Ohms
5.2.2-Channel Dolby Atmos, DTS:X Support
THX Select Certification
4K 120 Hz HDR Pass-Through
Up to 8K UHD at 60 Hz
HDMI 2.1 for Enhanced Gaming
6 x HDMI-In / 2 x HDMI-Out
Built-In Streaming Support
DTS Play-Fi Ready
Wi-Fi & Bi-Directional Bluetooth
In the Box
Onkyo TX-NR6100
Indoor FM Antenna
AM Loop Antenna
Speaker Setup Microphone
Remote Control with Batteries
Power Cord
Specs
Amplifier
Channels
5.2.2
Power Output per Channel
1-Channel Driven:
210 W at 6 Ohms / 1 kHz / 10% THD
2-Channel Driven:
100 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
Dynamic Power per Channel
240 W at 3 Ohms (Front)
210 W at 4 Ohms (Front)
120 W at 8 Ohms (Front)
Frequency Response
10 Hz to 100 kHz +1 dB (Direct, Pure Mode)
THD+N
0.08% (20 Hz to 20 kHz, Half Power)
Speaker Impedance
4 to 16 Ohms
Tone Control
Bass (20 Hz): ±10.0 dB
Treble (20 kHz): ±10.0 dB
Audio Processing
DTS Compatibility
DTS:X
Dolby Compatibility
Dolby Atmos
Auro 3D Support
No
Video
Pass-Through Support
4K120p
Upscaling
No
Connectivity
Rear A/V Inputs
3x HDMI 2.1
3x HDMI 2.0
4x RCA
1x Stereo RCA (Phono) with Ground Screw
1x Optical TOSLINK
1x Digital Coaxial
Rear A/V Outputs
1x HDMI
1x HDMI Zone 2
1x RCA Zone 2 / Zone B Line-Out
2x RCA Subwoofer Pre-Out
Front I/O
1x 1/4" / 6.35 mm Headphone Output
1x 1/8" / 3.5 mm Microphone Input
1x USB-A Input
Other Rear I/O
1x FM Coaxial F-Type Input
1x AM Block Input
1x RJ45 (Ethernet) Input/Output
1x USB-A (Power) Output
Speaker I/O
7x Binding Post Pairs
HDCP Support
Yes, Version 2.3
HDMI Compression Modes
4K120AB / 8K60AB
Audio Return Channel (ARC)
ARC, eARC
HDMI CEC
Yes
Media Card Slot
No
Bi-Amp Capability
Yes
Input Impedance
Line: 47 Kilohms
Phono (MM): 47 Kilohms
Input Sensitivity
Line: 200 mVrms
Phono (MM): 3.5 mVrms
Rated Output / Impedance
Subwoofer Pre-Out: 1 Vrms / 470 Ohms
Zone B / 2 Line-Out: 200 mVrms / 470 Ohms
Signal to Noise Ratio
Line: 106 dB (IHF-A)
Phono: 80 dB (IHF-A)
Wireless Connectivity
Wi-Fi
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth
Yes
Supported Audio Codecs
AAC, aptX, aptX HD, SBC
Wireless Audio Protocols
AirPlay 2, Chromecast built-in, DTS Play-Fi
Control
Virtual Assistant
Works with Alexa, Works with Google Assistant
Mobile App Compatible
Yes: Android & iOS
Tuner Section
Tuner Type
AM, FM
Number of Tuner Presets
40 Stations
Radio Frequencies
AM: 530 to 1710 kHz
FM: 87.5 to 107.9 MHz
Power
AC Input Power
120 VAC, 60 Hz
Power Consumption
Active: 635 W
No Sound: 65 W
Standby: 0.1 W
Physical
Dimensions (W x H x D)
17.1 x 6.8 x 14.9" / 435.0 x 173.5 x 379.5 mm
Weight
21.6 lb / 9.8 kg
Packaging Info
Package Weight
11.73 kg
Box Dimensions (LxWxH)
52.83 x 46.48 x 25.65 cm
