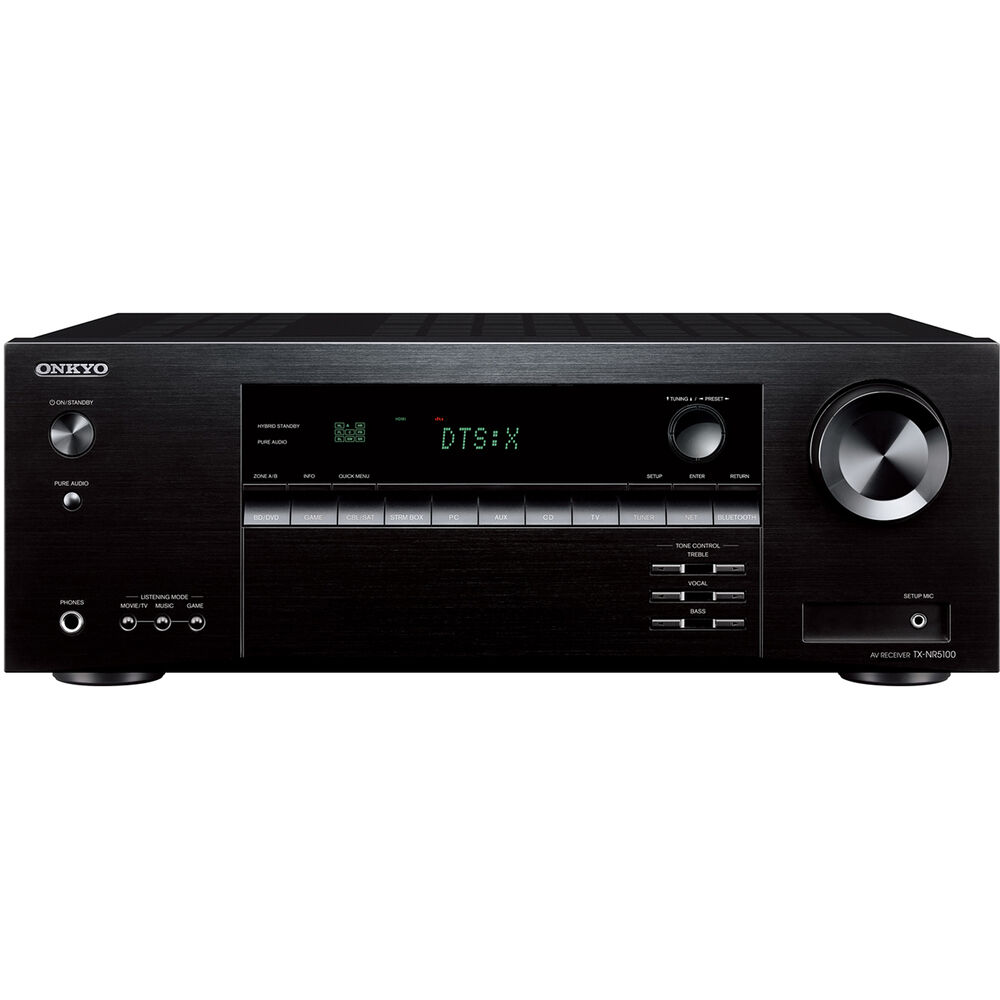

Onkyo TX-NR5100 *ของแท้รับประกัน 1ปี* 7.2-Channel Network A/V Receiver
Features
Up to 165W per Channel at 6 Ohms
5.2.2-Channel Dolby Atmos, DTS:X Support
4K 120 Hz HDR Pass-Through
Up to 8K UHD at 60 Hz
HDMI 2.1 for Enhanced Gaming
Simplified Audio with eARC
4 x HDMI-In / 2 x HDMI-Out
Built-In Streaming Support
DTS Play-Fi Ready
Wi-Fi & Bi-Directional Bluetooth
In the Box
Onkyo TX-NR5100
Indoor FM Antenna
AM Loop Antenna
Speaker Setup Microphone
Remote Control with Batteries
Specs
Amplifier
Channels
5.2.2
Power Output per Channel
1-Channel Driven:
165 W at 6 Ohms / 1 kHz / 10% THD
2-Channel Driven:
80 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
Dynamic Power per Channel
160 W at 3 Ohms (Front)
125 W at 4 Ohms (Front)
85 W at 8 Ohms (Front)
Frequency Response
10 Hz to 100 kHz +1 dB (Direct, Pure Mode)
THD+N
0.08% (20 Hz to 20 kHz)
Speaker Impedance
4 to 16 Ohms
Tone Control
Bass (20 Hz): ±10.0 dB
Treble (20 kHz): ±10.0 dB
Audio Processing
DTS Compatibility
DTS Virtual:X, DTS-HD Master Audio, DTS:X
Dolby Compatibility
Dolby Atmos, Dolby TrueHD
Auro 3D Support
No
Upmixing Technology
DTS Virtual:X, Dolby Atmos Height Virtualization Technology
Video
HDR Compatibility
HDR10+
Pass-Through Support
4K120p
Upscaling
No
GUI
Yes
Connectivity
Rear A/V Inputs
4x HDMI 2.1
3x RCA
1x Digital Coaxial
1x Optical TOSLINK
Rear A/V Outputs
2x HDMI
2x RCA Subwoofer Pre-Out
1x Stereo RCA Zone B Pre-/Line-Out
Front I/O
1x 1/4" / 6.35 mm Headphone Output
1x 1/8" / 3.5 mm Setup Mic Input
Other Rear I/O
1x RJ45 (Ethernet) Input/Output
1x USB-A (Power) Output
1x FM Coaxial F-Type Input
1x AM Block Input
Speaker I/O
5x Spring Clip Pairs (Center, Height, Rear Surround)
2x Binding Post Pairs (Front)
HDCP Support
Yes, Version 2.3
HDMI Compression Modes
4K120AB / 8K60B
Audio Return Channel (ARC)
ARC, eARC
HDMI CEC
Yes
Media Card Slot
No
Bi-Amp Capability
Yes
Input Impedance
Line: 32 Kilohms
Input Sensitivity
Line: 200 mVrms
Rated Output / Impedance
Zone B Line-Out: 1 Vrms / 2.2 Kilohms
Zone B Line-Out: 200 mVrms / 2.2 Kilohms
Signal to Noise Ratio
Line: 106 dB (IHF-A)
Wireless Connectivity
Wi-Fi
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Bluetooth
Yes
Supported Audio Codecs
AAC, aptX, aptX HD, SBC
Wireless Audio Protocols
AirPlay 2, Chromecast built-in, DTS Play-Fi, Roon Ready
Control
External Control Support
Android/iOS Control App
Virtual Assistant
Works with Alexa, Works with Google Assistant
Tuner Section
Tuner Type
AM, FM
Number of Tuner Presets
40 Stations
Radio Frequencies
AM: 530 to 1710 kHz
FM: 87.5 to 107.9 MHz
Power
AC Input Power
120 VAC, 60 Hz
Power Consumption
Active: 490 W
No Sound: 45 W
Standby: 0.1 W
Physical
Dimensions (W x H x D)
17.1 x 6.3 x 12.9" / 435.0 x 160.0 x 328.0 mm
Weight
18.5 lb / 8.4 kg
Packaging Info
Package Weight
9.95 kg
Box Dimensions (LxWxH)
52.58 x 41.66 x 23.88 cm
