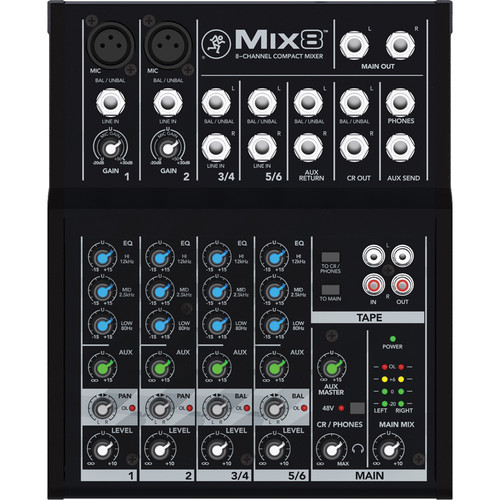

Mackie Mix8 *ของแท้รับประกัน1ปี* มิกเซอร์ 8 Ch., 2 ปรีไมค์, 2 Stereo 1/4" ไลน์อิน, 3-Band EQ

Mackie Mix8 *ของแท้รับประกัน1ปี* มิกเซอร์ 8 Ch., 2 ปรีไมค์, 2 Stereo 1/4" ไลน์อิน, 3-Band EQ

Features
2 Mic/Line Inputs with 3-Band EQ
2 Stereo 1/4" Line Inputs with 3-Band EQ
1 Aux Send with Stereo 1/4'' Returns
Stereo RCA Tape Inputs & Outputs
Pan, Level & Overload Indication
48V for Condenser Mics
Dedicated Stereo RCA Inputs
Headphone & Stereo Control Room Outs
Compact & Portable

In the Box
Mackie Mix8
Power Cord

Specs
Mixer
Number of Analog Input Channels    8
Number of Mic Preamps    2
Analog Output Channels    1 x Stereo Master Output
1 x Stereo Control Room/Monitor Output
1 x Mono Aux Send Output
1 x Stereo Tape/Record Output
1 x Stereo Headphone Output
Signal Processing
EQ Parameters    High: ±15 dB at 12 kHz (Shelving)
Mid: ±15 dB at 2.5 kHz (Notch/Peak)
Low: ±15 dB at 80 Hz (Shelving)
Filters    Low-Pass: 75 Hz, 18 dB/Octave
Built-In Effects    None
Performance
Frequency Response    Mic Input to Output:
20 Hz to 30 kHz +0/-1 dB (Unity Gain)
Max Input Level    XLR Mic Input:
+19 dBu
Aux Return:
+16 dBu
Line Input:
+21 dBu
Output Level    +21 dBu at Max Gain
I/O Impedance    Mic Input:
3.8 Kilohms
Line Input:
≥ 10 Kilohms
Tape Output:
1 Kilohms
Headphone Output:
22 Ohms
Main Output:
120 Ohms (Unbalanced)
240 Ohms (Balanced)
Crosstalk    Input to Output:
-85 dB at 1 kHz (20 Hz to 20 kHz)
Master Fader Off:
-75 dB at 1 kHz
CMRR    > -70 dB at Max Gain (1 kHz, Mic In to Insert Send Out)
EIN    -125 dBu at Max Gain
Noise Floor    All Outputs:
-100 dBu (Master Level at -∞, Channel Levels at -∞)
-90 dBu (Master Level at Unity, Channel Levels at -∞)
-85 dBu (Master Level at Unity, One Channel Level at Unity)
THD+N    Mic Input to Main Output:
< 0.25% (+4 dBu)
Power
AC Input Power    120 VAC, 60 Hz
230 VAC, 50 / 60 Hz
Power Supply Output    18 VAC at 1000 mA
Physical
Rack Mountable    No
Dimensions    2.1 x 7.8 x 9.6" / 53 x 198 x 244 mm
Weight    2.5 lb / 1.1 kg
Packaging Info
Package Weight    1.49 kg
Box Dimensions (LxWxH)    34.04 x 23.62 x 8.64 cm
