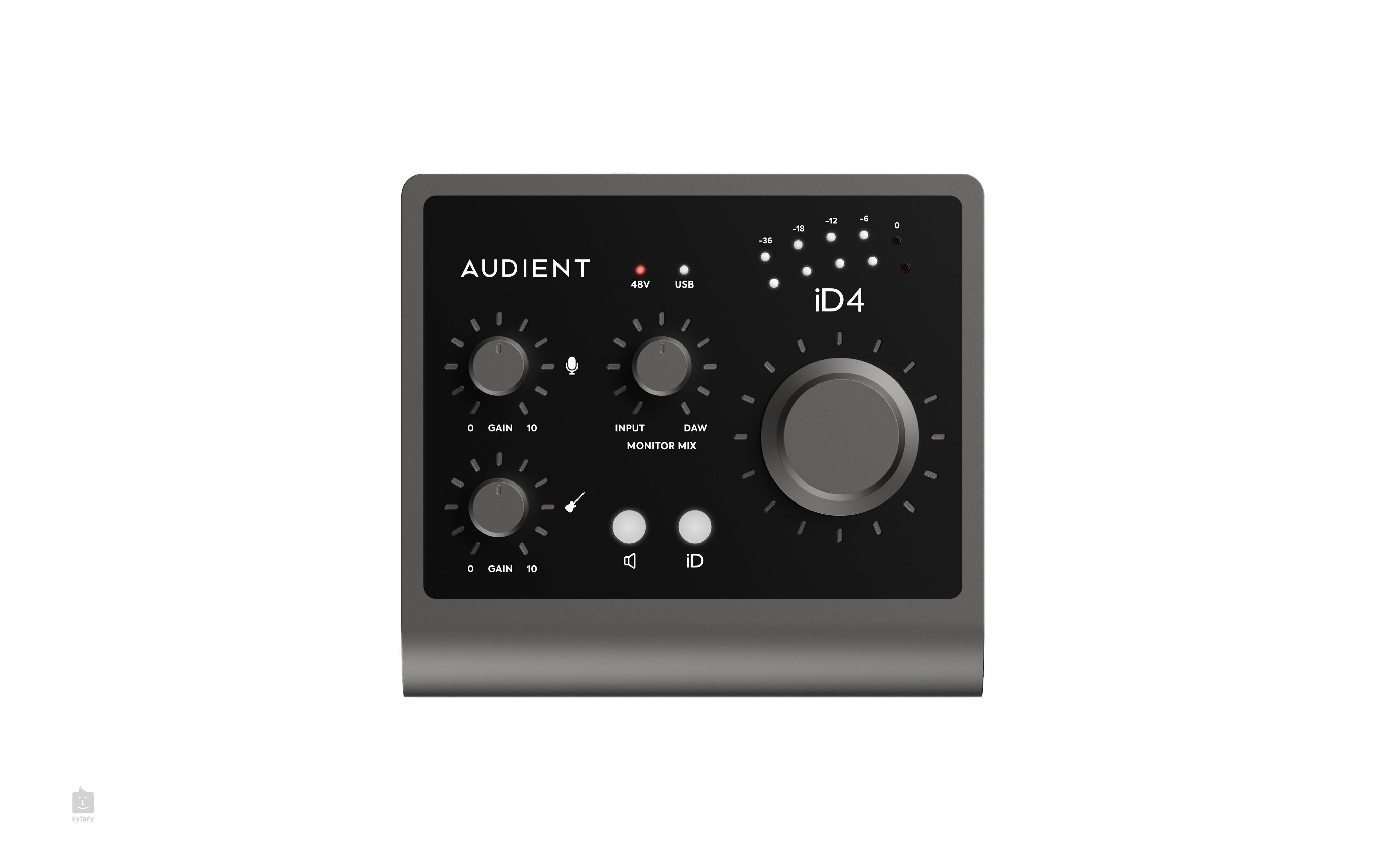

Audient iD4 MKII ออดิโออินเตอร์เฟส USB-C, 2-in/2-out, JFET DI, 2 หูฟัง, รองรับ Mac/PC, ฟรี Software Bundle รับประกัน 1 ปี

Audient iD4 MKII ออดิโออินเตอร์เฟส USB-C, 2-in/2-out, JFET DI, 2 หูฟัง, รองรับ Mac/PC, ฟรี Software Bundle รับประกัน 1 ปี

Feature
24 bit / 44.1 - 96 kHz
ADC dynamic range: 121 dB
DAC dynamic range: 126 dB
@Class A Audient console microphone preamplifier
Mic Gain 58 dB, <0.002% THD + N
48 Volt phantom power
Discrete JFET instrument input on the front
D.I. Gain: -5 to 45 dB (incl. +10 dB software boost)
Main speaker output: 6.3 mm jack
Speaker mute button
Monitor mix and monitor panning function
Combined mic / line input: XLR / jack combination socket
Powerful headphone amplifier with independent DAC
2 Headphone outputs: 1x 6.3 mm jack, 1x 3.5 mm jack
iD Control regulator with ScrollControl for DAW integration
Power supply via USB
Power consumption USB-C: 1.5A @ 5V
Power consumption USB 3.0: 0.9A @ 5V
Mac / PC / iOS compatible
Desktop housing made entirely of metal
Dimensions: 133 x 120 x 40.7 mm
Weight: 0.74 kg
Includes USB C-C cable (1m) and Audient ARC download software package

In the Box
-Audient iD4 MKII
-USB Cables
- Free Software + Plugins

Specifications
D.I / Instrument Input
RANGE:    40dB
LINEUP:    12dBu = 0dBFS
THD+N @ 0dBu:    0.1%
SNR:    100dBu A-Weighted
FREQUENCY RESPONSE – MIN GAIN    ±0.5dB 10Hz to 20kHz

Microphone preamplifier
GAIN RANGE:    58dB
LINEUP:    12dBu = 0dBFS
MIC MAX INPUT LEVEL:    12dBu
MAX INPUT LEVEL:    21dBu
INPUT IMPEDANCE (Mic):    2.8k
INPUT IMPEDANCE (Line):    >8k
THD+N @ 0dBu    0.00170%
THD+N @ 0dBu MAX GAIN:    <0.04%
SNR:    101dBu A-Weighted
EIN:    129dB A-Weighted
CMRR @ 1k:    >75dB
FREQUENCY RESPONSE – MIN GAIN    ±0.5dB 10Hz to 40kHz

Analogue to Digital Converter
THD+N @ -1dBFS:    0.001%
DYNAMIC RANGE:    120dB A-Weighted
FREQUENCY RESPONSE:    ±0.5dB 10Hz to 40kHz

Line Outputs (DAC):
LINEUP:    12dBu = 0dBFS
THD+N @ -1dBFS:    0.0006%
DYNAMIC RANGE:    125.5dB A-Weighted
CROSSTALK:    >120dB
FREQUENCY RESPONSE:    ±0.1dB 10Hz to 40kHz
1/4” TRS JACK:    Tip (Hot), Ring (Cold) & Sleeve (Shield)

Headphone Outputs:
LINEUP:    18dBu = 0dBFS
THD+N @ -1dBFS:    0.0009%
DYNAMIC RANGE:    125.5dB A-Weighted
CROSSTALK:    >116dB
FREQUENCY RESPONSE:    ±0.1dB 10Hz to 40kHz
MAXIMUM LEVEL @ 30R:    2.59V Peak, 1.827V RMS, 223mW
MAXIMUM LEVEL @ 62R:    4.18V Peak, 2.95V RMS, 280mW
MAXIMUM LEVEL @ 600R:    7.72V Peak, 5.46V RMS, 100mW
1/4” TRS JACK:    Tip (Left), Ring (Right) & Sleeve (Shield)

USB-C High Speed:
BUS POWER:
MIN REQUIREMENT:    0.9A @ 5V    >=USB 3.0 Port
MAX REQUIREMENT:    1.5A @ 5V    USB-C: Provides higher headphone outputs levels
No. of INPUT CHANNELS:    2 (2 Analogue)
No. of OUTPUT CHANNELS:    2 (2 Analogue)
DSP MIXER LATENCY ROUND TRIP (in-to-out):    44.1kHz    0.65mS
48.0kHz    0.6mS
88.2kHz    0.33mS
96.0kHz    0.31mS
