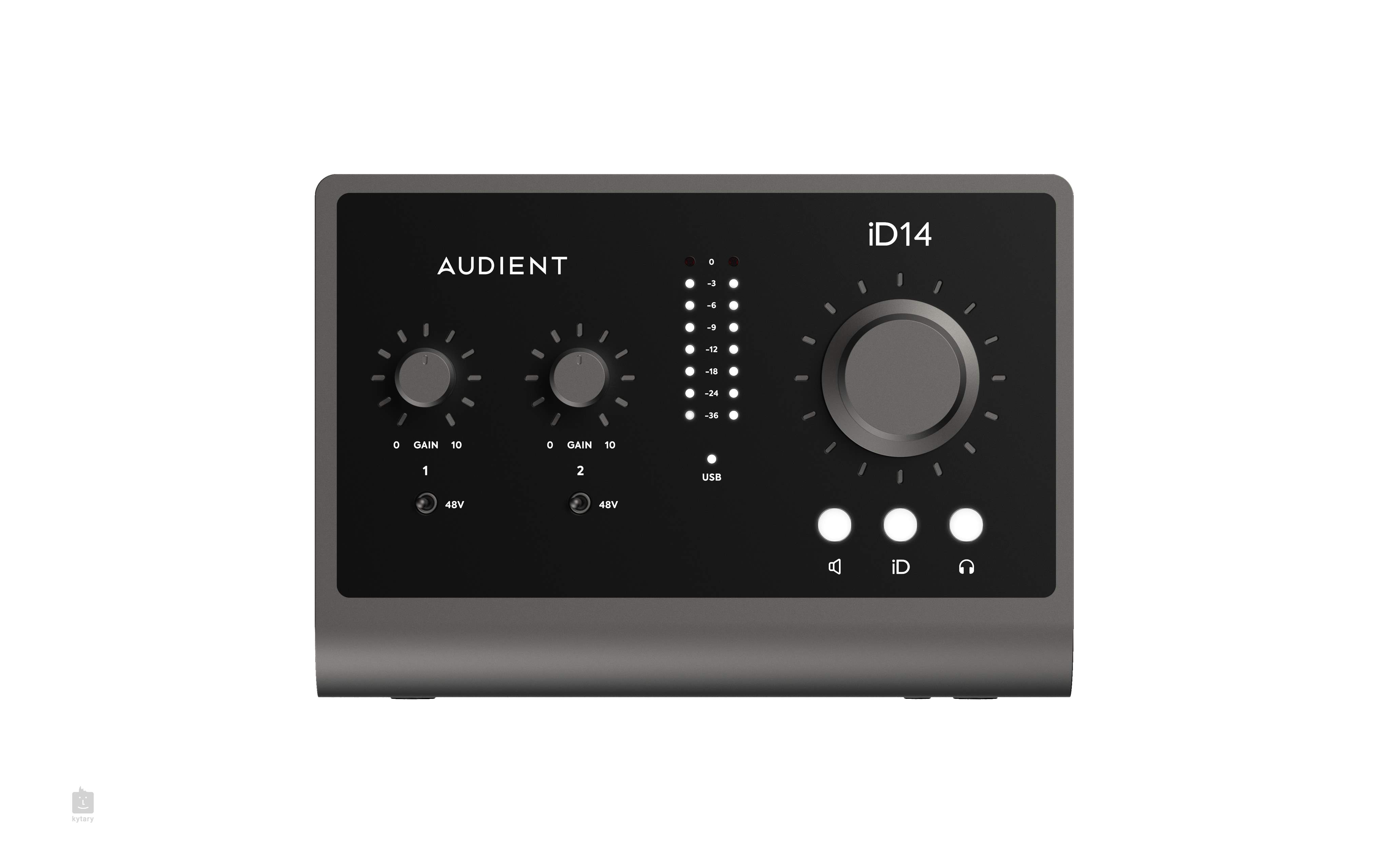

Audient iD14 MKII ออดิโออินเตอร์เฟส USB-C,10-in/6-out, ADAT, 2 หูฟัง, รองรับ Mac/PC, ฟรี Software Bundle รับประกัน 1 ปี

Audient iD14 MKII ออดิโออินเตอร์เฟส USB-C,10-in/6-out, ADAT, 2 หูฟัง, รองรับ Mac/PC, ฟรี Software Bundle รับประกัน 1 ปี

Feature
Connection: USB C
24 bit / 44.1 - 96 kHz
ADC dynamic range: 121 dB
DAC dynamic range: 126 dB
2 x Audient Class A console microphone preamps
2 Combined mic / line inputs: XLR / jack combination socket
Mic Gain 58 dB, <0.002% THD + N
48 Volt phantom power
Discrete JFET instrument input on the front
D.I. Gain: -5 to 45 dB (incl. +10 dB software boost)
Combined ADAT and S / PDIF input (TOSLINK)
4 Line outputs: 6.3 mm jack
Speaker mute button
Monitor mix and monitor panning function
Powerful headphone amplifier with independent DAC
Headphone outputs: 1x 6.3 mm jack, 1x 3.5 mm jack
iD Control regulator with ScrollControl for DAW integration
Desktop housing made entirely of metal
Dimensions: 173 x 120 x 62 mm
Weight: 1.25 kg
Includes USB C-C cable (1m) and Audient ARC download software package

In the Box
-Audient iD14 MKII
-USB Cables
- Free Software + Plugins

Specifications
D.I / Instrument Input
RANGE: 40dB
LINEUP: 12dBu = 0dBFS
THD+N @ 0dBu: 0.1%
SNR: 100dBu A-Weighted
FREQUENCY RESPONSE – MIN GAIN ±0.5dB 10Hz to 20kHz
1/4” TS JACK: Tip (Hot) & Sleeve (Shield)

Microphone preamplifier
GAIN RANGE: 58dB
LINEUP: 12dBu = 0dBFS
MIC MAX INPUT LEVEL: 12dBu
MAX INPUT LEVEL: 21dBu
INPUT IMPEDANCE (Mic): 2.8k
INPUT IMPEDANCE (Line): >8k
THD+N @ 0dBu 0.00170%
SNR: 101dBu A-Weighted
EIN: 129dB A-Weighted
CMRR @ 1k: >75dB
CROSSTALK: >-100dB
FREQUENCY RESPONSE – MIN GAIN ±0.5dB 10Hz to 40kHz
XLR COMBI FEMALE: Pin 2 (Hot), Pin 3 (Cold) & Pin 1 (Shield)
1/4” TRS JACK: Tip (Hot), Ring (Cold) & Sleeve (Shield)

Analogue to Digital Converter
THD+N @ -1dBFS: 0.001%
DYNAMIC RANGE: 120dB A-Weighted
CMRR: >80dB
FREQUENCY RESPONSE: ±0.5dB 10Hz to 40kHz

Line Outputs (DAC):
LINEUP: 12dBu = 0dBFS
THD+N @ -1dBFS: 0.0006%
DYNAMIC RANGE: 125.5dB A-Weighted
CROSSTALK: >120dB
FREQUENCY RESPONSE: ±0.1dB 10Hz to 40kHz
1/4” TRS JACK: Tip (Hot), Ring (Cold) & Sleeve (Shield)

Headphone Outputs:
LINEUP: 18.5dBu = 0dBFS
THD+N @ -1dBFS: 0.0009%
DYNAMIC RANGE: 125.5dB A-Weighted
CROSSTALK: >116dB
FREQUENCY RESPONSE: ±0.25dB 10Hz to 40kHz
MAXIMUM LEVEL @ 30R: 2.59V Peak, 1.827V RMS, 223mW
MAXIMUM LEVEL @ 62R: 4.18V Peak, 2.95V RMS, 280mW
MAXIMUM LEVEL @ 600R: 7.72V Peak, 5.46V RMS, 100mW
1/4” TRS JACK: Tip (Left), Ring (Right) & Sleeve (Shield)

USB-C High Speed:
BUS POWER:
MIN REQUIREMENT: 0.9A @ 5V >=USB 3.0 Port
MAX REQUIREMENT: 1.5A @ 5V USB-C: Provides higher headphone outputs levels
No. of INPUT CHANNELS: 10
No. of OUTPUT CHANNELS: 16
DSP MIXER LATENCY ROUND TRIP (in-to-out): 44.1kHz 0.65mS
48.0kHz 0.6mS
88.2kHz 0.33mS
96.0kHz 0.31mS
