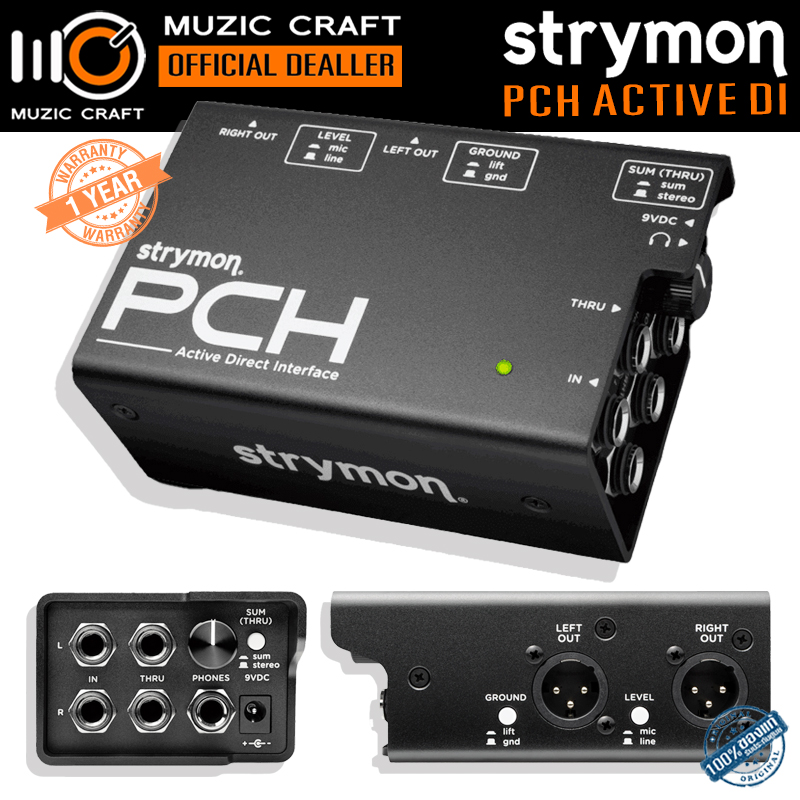

Strymon PCH *ของแท้รับประกัน 1ปี* Active DI with Headphone Amp, ดีไอบ็อกซ์/ เฮดโฟนแอมป์
Feature:
2-ch. multimode DI features a stereo headphone amplifier for versatile high-fidelity monitoring and performance
9VDC power architecture internally converts to 24V to ensure you virtually never clip your signal
Flexible connectivity supports stereo, dual-mono, and summable thru-output options
Unbalanced 3-pin XLR outputs ensure diverse, high-quality interoperative use with PA systems, recording interfaces, and more
Switchable Mic-/Line-level operation and defeatable Ground/Lift usage accommodate myriad instrumental configurations
Ultra-low THD promises transparent, uncolored sound
High-durability construction guarantees a chassis that won’t buckle under the demands of touring or traveling
Onboard power provides enough voltage to drive high-impedance headphones
Items Included
Strymon PCH
|
ข้อมูล |
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
|
รายละเอียดสินค้า |
Strymon PCH *ของแท้รับประกัน 1ปี* Active DI with Headphone Amp, ดีไอบ็อกซ์/ เฮดโฟนแอมป์
Feature:
2-ch. multimode DI features a stereo headphone amplifier for versatile high-fidelity monitoring and performance
9VDC power architecture internally converts to 24V to ensure you virtually never clip your signal
Flexible connectivity supports stereo, dual-mono, and summable thru-output options
Unbalanced 3-pin XLR outputs ensure diverse, high-quality interoperative use with PA systems, recording interfaces, and more
Switchable Mic-/Line-level operation and defeatable Ground/Lift usage accommodate myriad instrumental configurations
Ultra-low THD promises transparent, uncolored sound
High-durability construction guarantees a chassis that won’t buckle under the demands of touring or traveling
Onboard power provides enough voltage to drive high-impedance headphones
Items Included
Strymon PCH
Technology
Runs on 9VDC — internally converted to 24V to be virtually unclippable
Onboard headphone amplifier powerful enough to drive high impedance headphones cleanly
Switchable Mic/Line level operation for the XLR outputs
Defeatable ground lift for the XLR outputs
Defeatable Sum for the Thru outputs
Powered by a custom single-channel internal Ojai power supply
Internal supply’s custom transformer provides galvanic isolation
Extremely flat frequency response
Extremely low total harmonic distortion
Construction
Thick 3mm extruded aluminum external shell with 5mm ribs for bulletproof protection
Shell awning design protects headphone volume pot while allowing easy access to jacks
High quality long life jacks and switches
Specs
In
Input Impedance: 1 MΩ
Max Input Level: +20dBu
Thru
Output Impedance: 100 Ω
SNR: +135dB (A-Weight)
Noise Floor: -115dBV (10-22kHz no A-Weight)
Gain Relative to Inputs: +0dB
Frequency Response: +/- 0.25dB, 10Hz – 80kHz+
HP
Output Impedance: 2 Ω
Frequency Response: +/- 0.25dB, 10Hz – 80kHz
XLR, Line Setting
Output Impedance: 275 Ω
SNR: +130dB (A-Weight)
Noise Floor: -110dBV (10-22kHz no A-Weight)
Gain Relative to Inputs: +0dB
Maximum Output Level: +20dBu
Frequency Response: +/- 0.25dB, 10Hz – 80kHz+
XLR, Mic Setting
Output Impedance: 100 Ω
Gain Relative to Inputs: -20dB
Maximum Output Level: +0.0dBu
SNR: +125dB
Noise Floor: -125 dBV (10-22kHz no A-Weight)
Frequency response: +/- 0.25dB, 10Hz – 80kHz+
Power Supply
Input Voltage: 9VDC
Current Requirement: 500mA
Dimensions
12.4 x 7.6 x 5 cm
Weight 0.55 kg ![]() ![]() ![]() ![]() ![]() ![]() ![]() ![]() |
