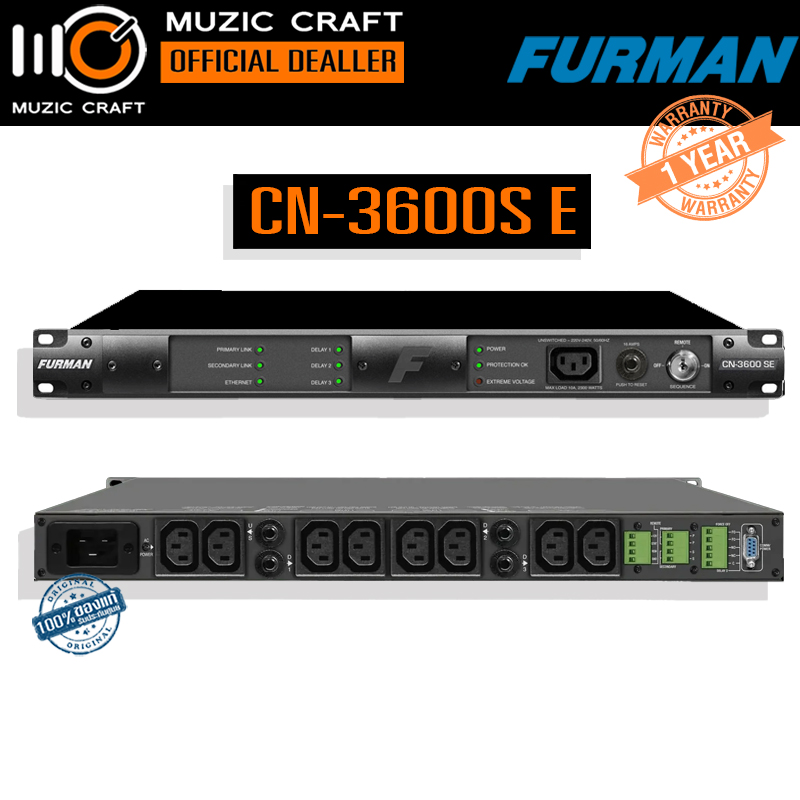

Furman CN-3600 SE *ของแท้รับประกัน 1ปี* Surge Protectors เครื่องกรองสัญญาณไฟ/กันไฟกระชาก
Features
16A SmartSequencing Power Conditioner
Surge Protection
Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available
Noise Filtration
Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity
Voltage Protection
Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods
SmartSequencing™
SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key
16A SmartSequencing Power Conditioner
16A SmartSequencing Power Conditioner
Diagnostic Lights
Diagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator
16 Amp Output Current
16 amp maximum current capacity with incorporated 16 amp thermal circuit breaker
Remote Access (RS-232)
RS-232 compatibility & command set provide integration with control systems, open source and control programming
Nine Total Outlets
The CN-3600 SE contains eight rear panel IEC C13 outlets and one front panel IEC C13 outlet
In the Box
FurmanCN-3600 SE , AC Power Cord
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า
Furman CN-3600 SE *ของแท้รับประกัน 1ปี* Surge Protectors เครื่องกรองสัญญาณไฟ/กันไฟกระชาก

Features
16A SmartSequencing Power Conditioner
Surge Protection
Series Multi-Stage Protection (SMP) Technology provides the highest level of surge & spike protection available
Noise Filtration
Linear Filtration Technology (LiFT) reduces AC noise linearly across a very wide bandwidth for unequaled audio & video clarity
Voltage Protection
Extreme Voltage Shutdown (EVS) circuity safely powers down itself and connected equipment during unsafe voltage periods
SmartSequencing™
SmartSequencing allows bidirectional, safe sequenced power up/down operations via the push of a button or turn of a key
16A SmartSequencing Power Conditioner
16A SmartSequencing Power Conditioner
Diagnostic Lights
Diagnostic lights provide valuable system information including power quality, “Protectection Ok” indicator, and Extreme Voltage indicator
16 Amp Output Current
16 amp maximum current capacity with incorporated 16 amp thermal circuit breaker
Remote Access (RS-232)
RS-232 compatibility & command set provide integration with control systems, open source and control programming
Nine Total Outlets
The CN-3600 SE contains eight rear panel IEC C13 outlets and one front panel IEC C13 outlet

In the Box
FurmanCN-3600 SE , AC Power Cord

Specifications
Family
Contractor Series 240V
Line Voltage
240 Volts
AC Voltage Input Range
180-270VAC, 50/60Hz
AC Cord
1.5mm² x 3, 2.5m Long, black, IEC C19 Female to Schuko CEE 7/7 Male Plug
Rear Panel Outlets
1 IEC C13 pair (Unswitched), 3 IEC C13 pairs (Sequenced, each pair controlled by separate relay)
Front Panel
1 IEC C13 (Unswitched)
Surge/Under-Overvoltage Protection
AC Surge Protection Series Multi-Stage Protection SMP
Spike Protection Mode
Line to neutral, zero ground leakage
Spike Clamping Voltage
375V peak @ 6,000 volts/3,000 amps
Response Time
1 nanosecond
Maximum Surge Current
6,500 Amps
AC Undervoltage Protection
EVS, 175VAC±3VAC
AC Overvoltage Protection
EVS, 275VAC±5VAC
AC Overvoltage Reset Modes
Manual and Auto-reset (configurable)
AC Filtering
LiFT
Noise Attenuation
Linear, 10dB @10KHz, 40dB @100KHz, 50dB @500KHz
Operating Temperature Range
5°C (40°F) to 40°C (105°F)
Humidity Range
<90% rH (Relative Humidity)
Keyswitch
Front panel, 3-position keyswitch (On, Off, Remote)
Keys
Included, 1 pair
Pushbutton Switch
Front panel, hidden by security cover
Circuit Breaker
Front panel, pushbutton, 20A Thermal Breaker
Front Panel Diagnostic Indicators
Primary link, Secondary link, Ethernet, Remote off, Delay 1, Delay 2, Delay 3, Power, Protection OK, Extreme Voltage
Front Panel DIP Switches
Hidden by security cover, 1 Minute Delay, 2 Minute Delay, 4 Minute Delay, Force Off NO/NC, 12V Mode On/Off, BND Mode On, Momentary/Maintained, Primary/Secondary, EVS Reset Auto/Manual
Potentiometer
Front panel, hidden by security cover, fine-tune delay adjust
Control/Status/Triggering (Rear Panel)
Remote Terminal +5-30VDC In, 12VDC (12mA) Out
SmartSequencing
Phoenix 4-Pin Connector, Screw Terminals, Primary & Secondary Links (Current Loop – 1000’ nominal)
Remote Terminal
Phoenix 4-Pin Connector With Screw Terminals; +12V, STAT, REM, GND (Class 2 Wiring)
Force Off/Delay 3 Terminal
Phoenix 5-Pin Connector With Screw Terminals, FORCE OFF, DELAY 3 (Class 2 Wiring)
RS-232 Compatible
Yes, DB-9 Connector
Voltmeter
Available with RS-232, ± 2VAC accuracy
Ammeter
Available with RS-232, ±1A accuracy
Power Consumption (No Load)
10 Watts
Safety Agency
NRTL-C, RoHS Compliant

 Dimensions: 48.3 x 28 x 4.5 cm.
Weight: 5.5kg
