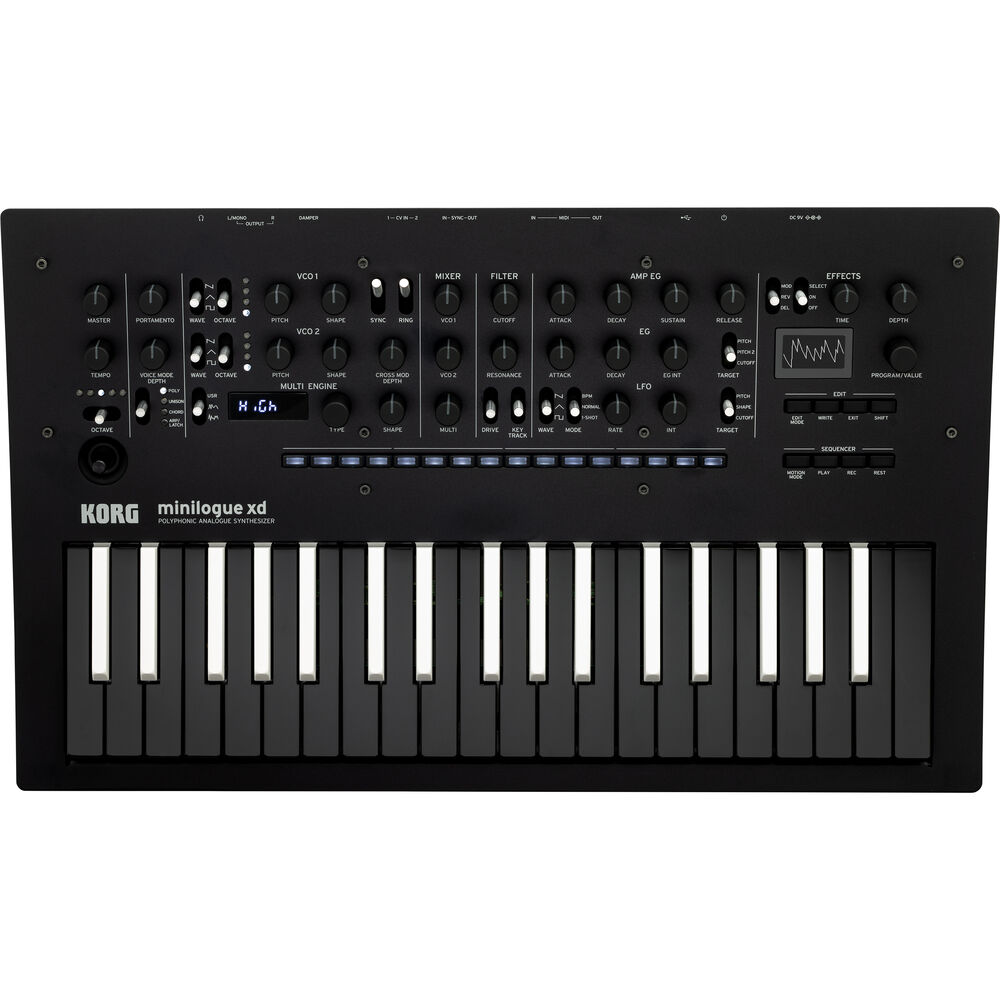

Korg Minilogue XD Inverted *ของแท้รับประกัน 1ปี* Polyphonic Analog Synthesizer with Multi-Engine (Limited-Edition Black)

Korg Minilogue XD Inverted *ของแท้รับประกัน 1ปี* Polyphonic Analog Synthesizer with Multi-Engine (Limited-Edition Black)

FEATURE

4-Voice, Fully Programmable

37-Note Keyboard (Slim-Key with Vel)

500 Presets (200 Factory, 300 User)

Modes: Poly, Arp, Chord, Unison

Open Source: User Customization

Multi Engine (Noise, VPM, User)

Arpeggiator & Sequencer (Step & Motion)

32-Bit Digital FX (Mod, Verb, Delay)

OLED Display with Built-In Oscilloscope

In the Box

Korg Minilogue XD Inverted,

Power Adapter

Specs

General

Item Type

Keyboard Synth

Sound Generation

Analog

Keyboard

37 Slim Keys with Synth Action

Touch Sensitivity

Yes

Aftertouch

Yes (External MIDI Only)

Expression Controls

1x Joystick

Transport Controls

Yes

Display

Main Display: Monochrome OLED

Secondary Display: Monochrome LED

Sounds

Number of Sounds, Kits, or Samples

300x User Sound Preset

200x Factory Sound Preset

Favorites Recall

16x Quick Recall Slot

Maximum Polyphony

4 Voice

Multitimbrality

1-Part

Built-In Effects

1x Multi-Effect: Chorus, Delay, Ensemble, Flanger, Phaser, Reverb

Performance Functions

Arpeggiator, Octave Shift, Sequencer, Transpose

Built-In Speaker

No

Synthesis

Oscillators

2x Variable (Sawtooth, Square, Triangle)

Mixer

Oscillator, Oscillator 2

Amplifiers

1x VCA

Envelopes

2x Amp/Assignable Envelope Generator: Attack, Decay, Sustain, Release

Filters

Number of Filters: 1 per Patch

Characteristic: Analog

Type: Low-Pass

Slope: 2-Pole/12 dB (LPF)

Key Tracking: Yes

Controls: Cutoff, Resonance, Drive

LFOs

Number of LFOs: 1x Global

Sequencing & Recording

Sequencer

Number of Steps: 16x Step

Motion Sequencing

Up to 4 Parameters

Arpeggiator

Yes

Connectivity

Audio I/O

2x 1/4" TS Unbalanced Stereo Main Output

1x 1/4" TRS Unbalanced Stereo Headphone Output

Pedal Support

1x 1/4" Sustain

MIDI I/O

1x DIN 5-Pin Input

1x DIN 5-Pin Output

CV/Gate I/O

2x 1/8" / 3.5 mm TS CV Input

Patch Points

No

Sync I/O

1x 1/8" / 3.5 mm TS Clock Input

1x 1/8" / 3.5 mm TS Clock Output

Network I/O

No

USB I/O

1x USB-B (Host Connection, MIDI)

Media/Memory Card Slot

No

Compatibility

Included Software

No

Mobile App Compatible

No

Power Requirements

AC/DC Power Adapter (Included)

AC/DC Power Adapter

9 VDC (Included)

Power Consumption

8 W

Physical

Color

Black

Included Accessories

No

Dimensions

19.7 x 7 x 3.4" / 50 x 17.8 x 8.6 cm

Weight

6.2 lb / 2.8 kg

Packaging Info

Package Weight

4 kg.

Box Dimensions (LxWxH)

62 x 42 x 17 cm
