ไฮไลท์ |

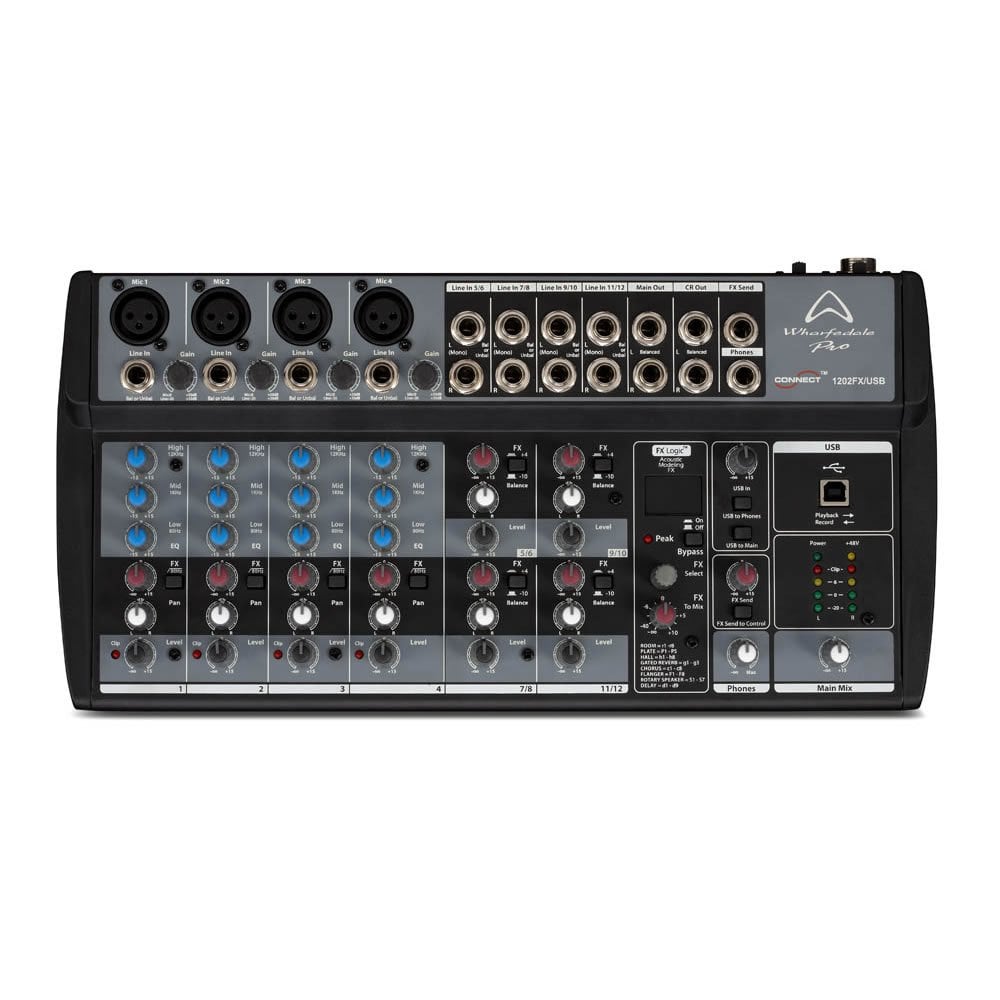

Wharfedale Pro Connect 1202-FX *ของแท้ประกัน 1ปี* มิกเซอร์ 16 input, USB Mixer/Audio Interface, 16 bit / 48kHz
Features:
16 Total inputs (4 x XLR / 6.3mm Jack, 4x twin 6.3mm jack)
4 x 6.3mm jack outputs (master, control room)
Studio grade phantom power XLR
16 bit / 48kHz built in USB audio interface
Playback and record via USB audio interface
80Hz HPF on first 4 channels
Headphone output
Pan / Balance control
Clip LED display
Ideal for home studio recording and live use
slimline profile for portability and to fit in gig bags
FX Send
56FX Logic effects built-in with independent send
In the Box
Wharfedale Pro Connect 1202-FX, Adaptor
|
ข้อมูล |
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
|
รายละเอียดสินค้า |
Wharfedale Pro Connect 1202-FX *ของแท้ประกัน 1ปี* มิกเซอร์ 16 input, USB Mixer/Audio Interface, 16 bit / 48kHz
Features:
16 Total inputs (4 x XLR / 6.3mm Jack, 4x twin 6.3mm jack)
4 x 6.3mm jack outputs (master, control room)
Studio grade phantom power XLR
16 bit / 48kHz built in USB audio interface
Playback and record via USB audio interface
80Hz HPF on first 4 channels
Headphone output
Pan / Balance control
Clip LED display
Ideal for home studio recording and live use
slimline profile for portability and to fit in gig bags
FX Send
56FX Logic effects built-in with independent send
In the Box
Wharfedale Pro Connect 1202-FX, Adaptor
Specs:
Maximum Output Level (1%THD at 1kHz )
Main 1/4" Jack Balanced out +26dBu ±1dBu, Unbalanced out +21dBu ±1dBu
Headphones output 150mw±5mw @ 32ohms
THD+N <0.025% @ + 14dBu ±0.5dBu
Frequency Response 20Hz~20kHz±1dB
Hum and Noise 20Hz-20Khz(150R) -127dBu ±5dBu Mic Pre Equivalent Input Noise-85dBu ±5dBu Residual Noise
S/N 78dB ±5dB @ fader max
FFT -62dBv ±5dBv @ gain fader max
CMRR 62dB±5dB @ 1kHz
Maximum Input LevelMic: +4dBu ±1dBuChannel Line: +25dBu±1dBuStereo Line: +25dBu ±1dBu
Impedances
Mic: Balanced 6 Kohms, Unbalanced 3Kohms ±500ohms
Line: Balanced 44 Kohms, Unbalanced 22Kohms ±2kohms
All other Unbalanced outputs:100 ohms,
Balanced outputs: 200ohms
Mono Input Channel Gain 50dB Variable MIC(0~50dB) Line(-20dB~+30dB)
Input Channel EQ
High (+/-15dB)±2dB 12kHz Shelving
Mid (+/-15dB)±2dB 1kHz Shelving
Low (+/-15dB)±2dB 80Hz Shelving
Input Channel EQ
High (+/-15dB)+/-1.5dB 12kHz Shelving
Mid (+/-15dB)+/-1.5dB 1kHz Shelving
Low (+/-15dB)+/-1.5dB 80Hz Shelving
Level Meter 4-Segment LEDx2 (output of +4dB = 0) Main L/R
AC POWER 120V, 60Hz; 220V, 50Hz; 230V, 50Hz; 240V, 50Hz
Net Weight 1.9 kg
Dimensions (W x H x D) 49.53 x 24.38 x 7.87 cm ![]() ![]() ![]() ![]() |
