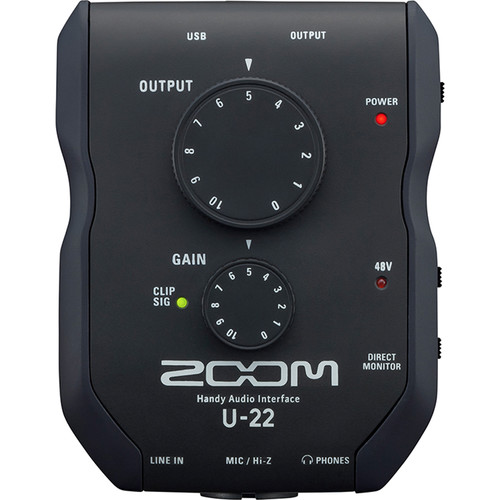

Zoom U-22 *ของแท้รับประกัน1ปี* ออดิโออินเตอร์เฟส 2x2 USB Handy Audio Interface, 24Bit /96kHz, 48V, Battery AA
Features
Musicians, Songwriters, and Singers
USB Type-A Connectivity
1 Mic / Hi-Z Preamp, 1 Stereo Line Input
1 Headphone Output, Stereo Line Output
Up to 24-Bit / 96 kHz Resolution
Battery or Bus Power / Mac, Windows, iOS
Phantom Power, Zero-Latency Monitoring
User-Friendly Tactile Controls
Bicolor Clip/Signal LED Indicator
DAW Software and iPad App
In the Box
Zoom U-22, USB Cable, Ableton Live 9 Lite/Steinberg Cubasis LE (Download)
ข้อมูล
น้ำหนัก
บาร์โค้ด
ลงสินค้า
อัพเดทล่าสุด
รายละเอียดสินค้า
Zoom U-22 *ของแท้รับประกัน1ปี* ออดิโออินเตอร์เฟส 2x2 USB Handy Audio Interface, 24Bit /96kHz, 48V, Battery AA

Features
Musicians, Songwriters, and Singers
USB Type-A Connectivity
1 Mic / Hi-Z Preamp, 1 Stereo Line Input
1 Headphone Output, Stereo Line Output
Up to 24-Bit / 96 kHz Resolution
Battery or Bus Power / Mac, Windows, iOS
Phantom Power, Zero-Latency Monitoring
User-Friendly Tactile Controls
Bicolor Clip/Signal LED Indicator
DAW Software and iPad App

In the Box
Zoom U-22, USB Cable, Ableton Live 9 Lite/Steinberg Cubasis LE (Download)

Specs
Form Factor Desktop
Display None
Channels of I/O Analog:
2 Inputs / 2 Outputs
Maximum Sampling Rate 96 kHz / 24-Bit
Number of Microphone Preamps 1 Preamp
Input Level Adjustment 1 x Knob
Expansion Slots None
Signal Processing
Pad None
Gain/Trim Range 0 to 43 dB
High-Pass Filter None
Solo/Mute None
Connectivity
Analog Audio I/O 1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Hi-Z Input
1 x 1/8" / 3.5 mm TRS Unbalanced Line Input
1 x Stereo RCA Coaxial Unbalanced Line Output
1 x 1/8" / 3.5 mm TRS Unbalanced Headphone Output
Phantom Power 48 V, Selectable On/Off
Digital Audio I/O None
Host Connection / USB 1 x USB-B (Class-Compliant)
Host Connection Protocol USB 2.0
USB (Non-Host) 1 x Micro-USB (Power Input)
Sync I/O None
Network I/O None
MIDI I/O None
Wireless Connectivity None
Performance
Frequency Response 20 Hz to 20 kHz ±1.5 dB (at 44.1 kHz)
20 Hz to 40 kHz ±2 dB (at 96 kHz)
Maximum Input Level Mic Inputs:
-0.8 dBu
Hi-Z Inputs:
+8.7 dBu
Line Inputs:
+1 dBu
Maximum Output Level Outputs:
-0.8 dBu at 0 dBFS
Headphone Output Power 10 mW per Channel into 32 Ohms
Impedance Mic Inputs:
2.6 Kilohms
Hi-Z Inputs:
484 Kilohms
Line Inputs:
22 Kilohms
Line Outputs:
1 Kilohms
Headphone Outputs:
10 Ohms
EIN Inputs:
-120 dBA (150-Ohm Source)
Digital Audio
Sample Rates 44.1 / 48 / 88.2 / 96 kHz
Sample Rate Conversion None
Bit Depths 24-Bit
Latency Zero-Latency Direct Monitoring
Sync Sources Internal
Audio Storage & Playback
Memory Card Slot None
Compatibility
OS Compatibility macOS 10.9.5 or Later
Windows 7 or Later (32/64-Bit)
iOS 7.1 or Later
*As of November, 2021: Check with manufacturer for the most up-to-date compatibility
Included Software Ableton Live Lite
Compatible Software (Not Included) Any Core Audio (Mac) Compliant Software
Supported Drivers/API & Plug-Ins macOS Class-Compliant (No Driver Needed)
Windows Driver Downloadable from Manufacturer
Processor Requirement Intel Core i3
Mobile Device Compatibility iPhone
iPad
Required Hardware Available USB 2.0 Port or USB 3.0 / 3.1/3.2 Gen 1 Port
Power
Power Requirements AC/DC Power Adapter (Not Included), Battery, or USB Bus Power
AC/DC Power Adapter 5 VDC (Not Included)
Power Consumption 5 W (Maximum)
Battery Type 2 x AA
Approximate Battery Life 5 Hours (Phantom Off)
Physical
Dimensions 4.69 x 3.61 x 1.76" / 11.92 x 9.18 x 4.46 cm
Weight 5.3 oz / 151.0 g
Packaging Info
Package Weight 0.43 kg
Box Dimensions (LxWxH) 17.53 x 15.88 x 6.60 cm
