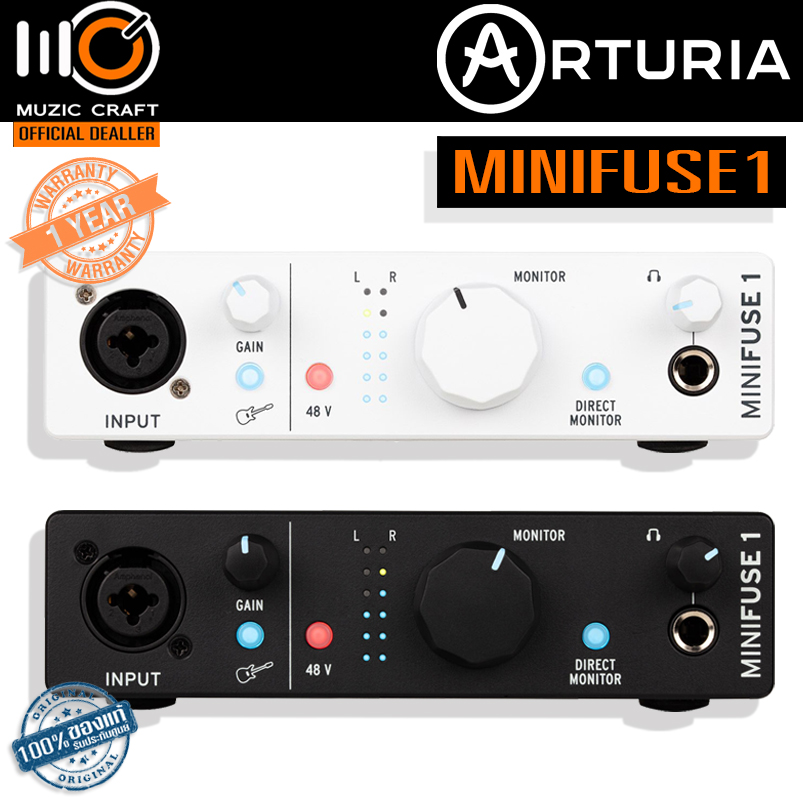

Arturia MiniFuse 1 *ของแท้รับประกัน 1ปี* ออดิโออินเตอร์เฟส USB-C Audio Interface, 24Bit/192kHz, Ableton Live Lite, Plugins

Arturia MiniFuse 1 *ของแท้รับประกัน 1ปี* ออดิโออินเตอร์เฟส USB-C Audio Interface, 24Bit/192kHz, Ableton Live Lite, Plugins

Features

Singers, Guitarists, Solo Podcasters

USB Type-C Connectivity

1 Mic / Line / Instrument Preamp

1 Headphone Out, Stereo Monitor Out

24-Bit / 192 kHz Converters

Bus Powered / Mac, Windows

Phantom Power, Direct Monitor

Built-In USB Hub for Keyboard Controller

Loopback Function for Content Creators

DAW, Amp Sim, VIs, and FX

In the Box

Arturia MiniFuse 1,

USB Type-C to USB Type-A Cable

Specs

Form Factor    Tabletop

Display    2 x Multi-Segment LED Meter

Channels of I/O    Analog:

1 Input / 2 Outputs

Max Sample Rate/Resolution    192 kHz / 24-Bit

Number of Mic Preamps    1

Input Level Adjustment    1 x Knob

Expansion Slots    None

Signal Processing

Pad    None

Gain/Trim Range    Mic/Line/Hi-Z Inputs:

56 dB

High-Pass Filter    None

Solo/Mute    None

Connectivity

Analog Audio I/O    1 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input (Front Panel)

2 x 1/4" TRS Balanced Line Output

1 x 1/4" TRS Unbalanced Headphone Output (Front Panel)

Phantom Power    48 V, Selectable On/Off

Digital Audio I/O    None

Host Connection / USB    1 x USB Type-C (USB 2.0)

USB (Non-Host)    1 x USB Type-A (USB 2.0, Device Connection)

Sync I/O    None

Network I/O    None

MIDI I/O    None

Wireless Connectivity    None

Performance

Frequency Response    Mic Inputs:

20 Hz to 20 kHz ±0.06 dB (Min Gain)

Hi-Z Inputs:

20 Hz to 20 kHz ±0.06 dB (Min Gain)

Line Inputs:

20 Hz to 20 kHz ±0.05 dB (Min Gain)

Line Outputs:

20 Hz to 20 kHz ±0.09 dB

Headphone Outputs:

20 Hz to 20 kHz ±0.09 dB

Max Input Level    Mic Inputs:

+9 dBu

Hi-Z Inputs:

+11.5 dBu

Line Inputs:

+22 dBu

Max Output Level    Line Outputs:

+12 dBu

Headphone Outputs:

+11.4 dBu

Headphone Output Power    137 mW into 33 Ohms

Impedance    Mic Inputs:

2.5 Kilohms

Hi-Z Inputs:

1 Megohm

Line Inputs:

16 Kilohms

Line Outputs:

94 Ohms

Headphone Outputs:

10 Ohms

Dynamic Range    Mic/Line/Hi-Z Inputs:

110 dB (A-Weighted)

Line Outputs:

107.5 dB (A-Weighted)

Headphone Outputs:

104 dB (A-Weighted)

THD+N    Mic Inputs:

-100 dB (Unweighted, 1 kHz, Typical)

Hi-Z Inputs:

-91 dB (Unweighted, 1 kHz, Typical)

Line Inputs:

-100 dB (Unweighted, 1 kHz, Typical)

Line Outputs:

-101 dB (Unweighted, 1 kHz, Typical)

EIN    Mic Inputs:

-129 dB A-Weighted

Digital Audio

Sample Rates    44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz

Sample Rate Conversion    None

Bit Depths    24-Bit

Latency    Zero-Latency Direct Monitoring

Sync Sources    Internal

Audio Storage & Playback

Memory Card Slot    None

Compatibility

OS Compatibility    macOS

Windows

Included Software    Ableton Live Lite

Compatible Software (Not Included)    Any Core Audio (Mac) Compliant Software

Included Plug-Ins    Virtual Instruments:

Arturia Analog Lab Intro

Guitar & Bass:

Native Instruments GUITAR RIG 6 LE

Delay:

Arturia Delay TAPE-201

Modulation:

Arturia Chorus JUN-6

Preamp & Channel Strip:

Arturia Pre 1973

Reverb & Room:

Arturia Rev PLATE-140

Required Hardware    Available USB 2.0 Port

USB Cable (Included)

Internet Connection    Required for Registration, Software/Driver Download

Power

Power Requirements    USB Bus Power

Physical

Anti-Theft Features    Kensington Security Slot

Dimensions    5.9 x 3.9 x 1.6" / 15 x 9.9 x 4.1 cm

Weight    0.9 lb / 0.4 kg

Packaging Info

Package Weight    0.46 kg

Box Dimensions (LxWxH)    17.53 x 13.46 x 4.83 cm
